SA-78NCE High-Tensile Steel Tube Cutting Machine

Dive into the world of tube cutting lines with our in-depth guide. Uncover the essence of precision and efficiency, where advanced cutting technology meets industry-specific needs. Catering to sectors like automotive, construction, and design, our expertly curated selection of tube cutting lines ensures swift, accurate, and consistent results. Explore detailed product specifications, user testimonials, and insider tips to maximize your tube processing capabilities. Harness the power of modern cutting solutions and set new standards in your projects. Your gateway to the zenith of tube cutting excellence awaits!

Enquire Now Download Spec Sheet

  • Especially suitable for Cutting Automotive parts such as Impact Beams, Chassis and Cross Bar tubing
  • High Tensile Steel Tube Cutting Machine (up to 120 kg/cm²)
  • TCT Saw Blades was recommend to use
  • High Speed Tube Cutting : the average cutting cycle times can be up to 4.5 seconds for most sizes.
  • Standard with 6.5 meters Bundle Loading Magazine (MB6), optional 8.5 meters (MB8) and 12.5 meters (MB12)
  • Automatic separation of first and last cut vs. working pieces
  • First and crop cuts down to 25 mm
  • Quick Saw Blade Change system
  • Safety covers for operational safety and minimizing noise levels.
  • 1 or 2 optional length stoppers with Digital Length Readout
  • 2 Loading Positions available: Left Side and Right Side Loading Magazines
  • Capacity up to Ø76mm tubing. Sawing Lengths up to 2 / 3 / 4.5 meters
  • Electric Servo Controlled Feeding and Cutting
  • i2® Touch Screen Graphical Controls with Automatic Recommendation of Cutting Parameters. 3 ~ 5 minutes setup time between most tube sizes
  • Unique Blade Holders and Gearbox Brake System for complete backlash elimination
  • SA-78NCE Tube Cutting Machine may connected to Deburring ( BDB-70 ) + Length Measuring ( LM-3000 ) + Stacking ( STK-3000 ) or connected to Chamfering ( FM-76V ) + Stacking (STK-3000)

Equipped with a Bundle Loading Magazine and with an Output Gate of 2, 3 or 4.5 meters, the SA-78NCE offers the highest sawing output for High Tensile, Mild Steel and Stainless Steel tubes and pipes. SA-78NCE may be equipped with 2 different saw blades:

  • TCT saw blades : High Tensile Materials and other Steels
  • HSS saw blades : mild and stainless steel.

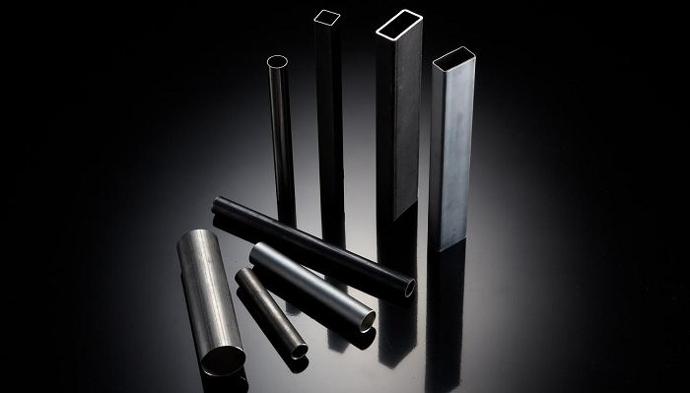

It is capable of sawing various shapes of profiles such as round, rectangular, square tubes and round bars. As part of an automation cells, It may connected to :

  • Brush Deburring ( BDB-70 ) or Chamfering ( FM-76V )
  • Length Measuring ( LM-3000 )
  • Stacking (STK-3000 )
Model Number
SB-12x3A-2S
SB-19x3A-2S
SB-30x4A-2S
SB-39x3A-1S
SB-39x4A-2S
Model Weight (lbs.)2425308637485842 (1S)
6283 (2S)
Model Dimensions (ft.)7 x 3 x 410 x 3 x 411 x 3 x 414 x 5 x 4 (1S)
15 x 4 x 4 (2S)
Mild SteelØ10.0 x 1.2tØ19.05 x 1.0tØ30.0 x 1.5tØ38.1 x 3.17t
Stainless SteelØ10.0 x 0.9tØ16 x 1.0tØ25.4 x 1.2tØ38.1 x 2.2t
Max Tube Length w/ Mandrel1650230026703000 (1S)
3850 (2S)
Max Draw Bend60 mm80 mm120 mm180 mm
Max Bending Radius25 mm30 mm38 mm50 (2S) mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Model Number
SA-78NCE Left Side Feeding
SA 78NCER (Right Side Feeding)
SA-78NCE-AS Left Side Feeding
SA 78NCER-R-AS (Right Side Feeding)
Model Weight3000 kg3000 kg
Model Dimensions10900 mm x 2600 mm x 1900 mm10900 mm x 2600 mm x 1900 mm
Cutting CapacityRound Tube Ø10 mm ~ Ø76 mm
SquareTubes 10 x 10 ~ 70 x 70
Rectangular Tube 15 x 10 ~ 80 x 70
Solid Round Bar O.D. 12 ~ O.D. 30		Round Tube Ø10 mm ~ Ø76 mm
SquareTubes 10 x 10 ~ 70 x 70
Rectangular Tube 15 x 10 ~ 80 x 70
Solid Round Bar O.D. 12 ~ O.D. 30
Speed (M / min)Sawing 45 ~ 272 (Ø285 Saw Blades)
Feeding 0.35 ~ 2.8		Sawing 45 ~ 272 (Ø285 Saw Blades)
Feeding 0.35 ~ 2.8
Saw BladesTCT: SOCO HTTM Ø285 x 2.0 t
HSS: Ø175 ~ Ø275
Lubrication: Air-Oil Mist or Coolant Circulation (Optional for HSS Saw Blades)		TCT: SOCO HTTM Ø285 x 2.0 t
HSS: Ø175 ~ Ø275
Lubrication: Air-Oil Mist or Coolant Circulation (Optional for HSS Saw Blades)
Cutting HeadElectro Servo ControlElectro Servo Control
LengthLoading:3.0 ~ 6.5 / 8.5 / 12.5
Min Leght between 2 Stoppers (mm): 30		Loading:3.0 ~ 6.5 / 8.5 / 12.5
Min Leght between 2 Stoppers (mm): 30
Material FeedingElectro Servo ControlElectro Servo Control
Length of Cut50 ~ 2000 / 300 / 4500Type 1: 200 ~ 2000 / 3000 / 4500
Type 2: 50 ~ 1850 / 2850 / 4350
Programmable Cutting Lengths1 or 2 Digital Readout Length StoppersNC Control Length Stopper
Electric Servo Control
