CNC Tube Benders

​

Advanced CNC Tube Benders

Dive into VLB Groups exclusive collection of Precision CNC tube benders, expertly designed for impeccable accuracy and consistency. Perfect for intricate bending tasks across various industries, our CNC tube benders promise unparalleled precision and reliability. Browse through detailed product listings, insightful reviews, and user testimonials to make an informed decision. Elevate your production standards and achieve flawless bends every time with our state-of-the-art CNC tube bending solutions. Shop today and transform your manufacturing prowess with advanced bending technology at your fingertips.

Enquire Now Download Spec Sheet

  • 100% electric drive of all 9 axles.
  • Bending of multiple fixed and variable radii in the same cycle.
  • Quick change of bending tool, without having to readjust.
  • High production speed and low power consumption.
  • Axis movements controlled by servo motors with absolute encoder feedback.
  • Simplified synchronization and optimization of bending cycles.
  • Compact and ergonomic design guarantees operating comfort.
  • Low maintenance costs with preventive intervention warnings.
  • Sensors that monitor the elastic behavior of the material, compensate for the bending cycle and provide more precision and less waste.
  • Bend left or right, with a shorter change time.
  • Powerful and intuitive VLB 3D software with anti-collision simulation.
  • Easily program or import files from the cloud or from the network.

TUBE CUTTING SYSTEM


Production optimization is an increasingly important topic. In order to save time, material, and electricity consumption and to increase the productivity of our machines, we have developed an effective servo-controlled cutting system, without material deformation.


It is a cutting system with a knife integrated into the bending head. This allows cutting in a continuous automatic bending cycle without material waste and post-processing is often not necessary.


VLB CNC Tube bender


VLB Pipe bender

LOADING AND UNLOADING SYSTEMS


Aware of the needs of modern industry, new bending machines have been developed with a clear goal: productivity! They are completely designed and prepared for the highest production level 24/7.

Mechanically, they only contain high-quality and low-maintenance components. In terms of software and hardware, they can effortlessly integrate with automatic loading and unloading systems such as tube storage, robots, or manipulators.

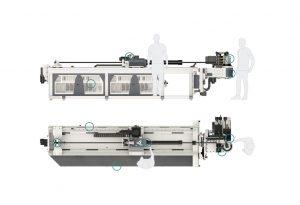

Evolutionary Design


Our bending machines are the result of decades of experience in the world of bending. The user experience of thousands of customers worldwide has resulted in unique application-oriented solutions for these machines.


We facilitate human-machine "communication", using visual status indicators and warning messages. We improve operating comfort, preventative maintenance, and corrective actions and increase the safety of the operator and equipment.





FAQs Related to CNC Tube Bender



Model NumberSB-51x4A-2S
SB-63x4A-2S
SB-80x4A-2S
SB-90x4A-2S
Model Weight (lbs.)8818110232094323148
Model Dimensions (ft.)16 x 4 x 516 x 4.5 x 4.523 x 7.5 x 6.516 x 8 x 5
Mild SteelØ50.8 x 2.5tØ63.5 x 2.5tØ76.2 x 2.0tØ88.9 x 2.2t
Stainless SteelØ50.8 x 1.9tØ63.5 x 1.9tØ76.2 x 1.5tØ88.9 x 1.5t
Max Tube Length w/ Mandrel3850385046004600
Max Draw Bend250 mm250 mm250 mm250 mm
Max Bending Radius75 mm75 mm80 mm80 mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm

CNC tube benders are computer-controlled machines that can bend tubes and pipes precisely. They can bend tubes into different shapes and configurations using precise programming, providing efficiency and repeatability during the bending process.

At Tube Form Solutions, the CNC tube bender works by following pre-programmed instructions. You enter the bend angles, tube dimensions, etc. into the machine’s computer. The CNC bender then performs the bending process accurately and consistently.

Our versatile CNC tube bending machine is capable of bending a wide variety of materials, such as steel, aluminum and stainless steel, as well as all shapes and sizes of tubes.

CNC Tube Benders CNC tube benders are used in a wide variety of industries, from automotive to aerospace, furniture to HVAC, any industry that needs precision tube bending.

Tube Form Solutions CNC tube bending machine is capable of bending a wide variety of tube lengths and diameters. Check out our product specifications or get in touch with our team to find out more about the machine’s bending capabilities.

Yes, we provide operator training on how to operate our CNC Tube Bender. Our team gives hands-on training so that you can program and use the machine for maximum efficiency.

Yes, our CNC tube bending machine is designed to meet your specific bending needs. Whether you require specific angles, unique shapes or configurations, we can program our machine to meet your needs.

Our CNC tube blender is renowned for its accuracy, dependability, and adaptability. Quality engineering and user-friendliness are at the forefront of our CNC tube blenders to meet the diverse requirements of our clients.

Do you offer technical support for the CNC tube bender?

Yes, we offer 24/7 technical support for our cnc tube bender. We have a team of experts ready to troubleshoot, answer programming questions, and provide any other technical support you need.
